uvex pronamic visor clear arc flash visor Class 1
| Article number: | 9916002 |
| Packaging unit: | ST: Pieces |
| EAN/UPC: | 4066853001706 |
uvex pronamic – the first sustainable visor system
With its sustainable pronamic visor system, uvex has developed an advanced solution that provides the best option for our new helmet range in terms of face protection. 100% protection but 50% fewer CO2 emissions live up to our ‘protecting planet’ motto. The click & pull system makes attaching the visor even easier, while the ergonomic joint system ensures maximum wearer comfort even when the visor is worn for longer periods.
General features
- Visors made of mass-balanced polycarbonate with uvex supravision excellence coating
- Anti-fog and scratch-resistant

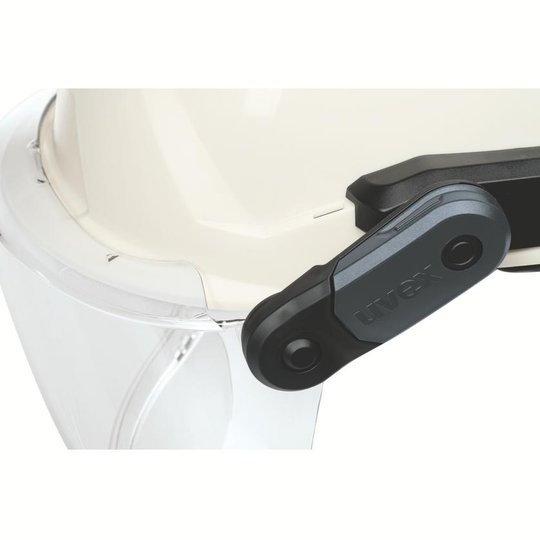

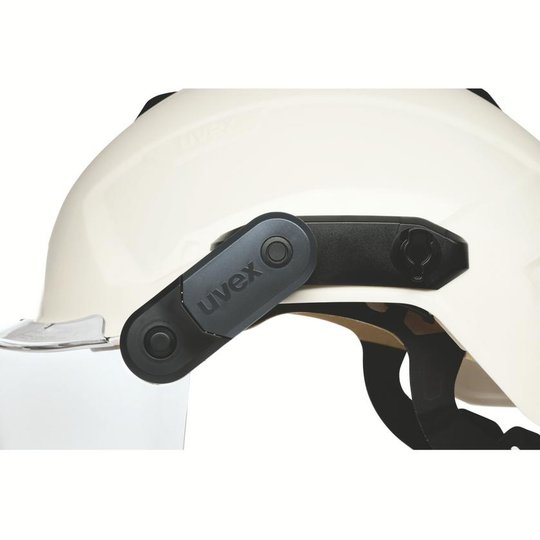

- The click & pull system allows the visor to be detached from the carrier system with a pulling movement
- Complies with the EN 166 and EN 170 standards, also certified for areas of application 3 (liquids), 8 (protection against short circuit electric arcs) and 9 (molten metal and hot solids)
Comfort features
- Central resting position above the head to avoid strain on the neck
- Anti-fog on the inside, extremely scratch- and chemical-resistant on the outside (uvex supravision excellence)
- Maximum freedom of movement
- Easy change of lens
- Click & pull system
- Hearing protection can be attached via bayonet connection
Protection features
- Certified to EN 166 (personal eye protection), EN 170 (UV protection filter) and GS-ET 29 (face protection for electrical work)
- Certified for areas of application 3 (liquids), 8 (protection against short circuit electric arcs) and 9 (molten metal and hot solids)
- Arc flash visor Class 1
- Marking: W 166 3 9 8-2 B CE 0196, 2C 1.2 W 1 B 8-1-0 9 KN CE
- Reliable UV400 protection
Notes
- Certified as a Class 1 (4 kA) visor for protection from electrical arcs in accordance with GS-ET 29
- Helmet not included
Sustainability
- Carbon footprint: 1.2 kg CO₂ eq
- Carbon footprint of production: 0.23 kg CO₂ eq
- Carbon footprint of material: 0.70 kg CO₂ eq
- Carbon footprint of transportation: 0.05 kg CO₂ eq
- Carbon footprint of packaging: 0.22 kg CO₂ eq
- CO₂ - calculation period: 06/2024
- Legal notice regarding carbon footprint: Calculation method: IPCC 2021 GWP 100a (based on ISO 14067) SimaPro 9.5.0.0 ecoinvent database 3.9. Scope: cradle-to-customer. These CO₂ values are valid at the time of calculation and may be subject to change. For more information, visit uvex-safety.de/co2-fussabdruck
| Attribute | Value |
|---|---|
| Brand | uvex |
| Product category | Visor |
| Product type | Visor adapter |
| Product family | uvex pronamic visor |
| Colour | Black |
| Version | Electric arc protection Class 1 |
| Gender | Unisex |
| Lens tint | Clear |
| Coating | uvex supravision excellence |
| Coating features | Extremely scratch-resistant on the outside, Anti-fog on the inside, Chemical-resistant |
| UV protection | UV400 |
| uvex technology | uvex supravision coating technology |
| Product line | - |
| Equipment | interchangeable lenses |
| Visor marking | - 2C-1,2 W 1 B 8-1-0 9 KN CE 0196 |
| Frame material | Plastic |
| Lens material | Polycarbonate (PC) |
| Product name | uvex pronamic |
| Lens colour | Clear |
| Transmission | 91% |
| Standard | EN 166:2001/EN 170:2002/GS-ET 29 |
CE Declaration of Conformity
